Headlight Off Alarm (CB6326E)

Details
Written by: Newton C. Braga

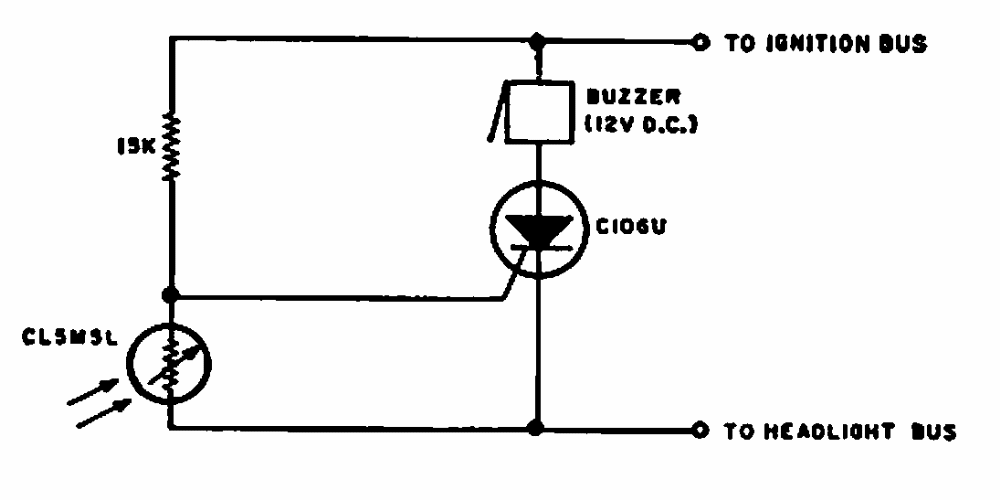

      We found this circuit in a 1968 Electronics World. It fires a buzzer if the ignition key is turned on and the headlight is off. The circuit uses an included oscillator buzzer like the Sonalert.




| Clique na imagem para ampliar |
