Unijunction Clock 2 (CB6473E)

Details
Written by: Newton C. Braga

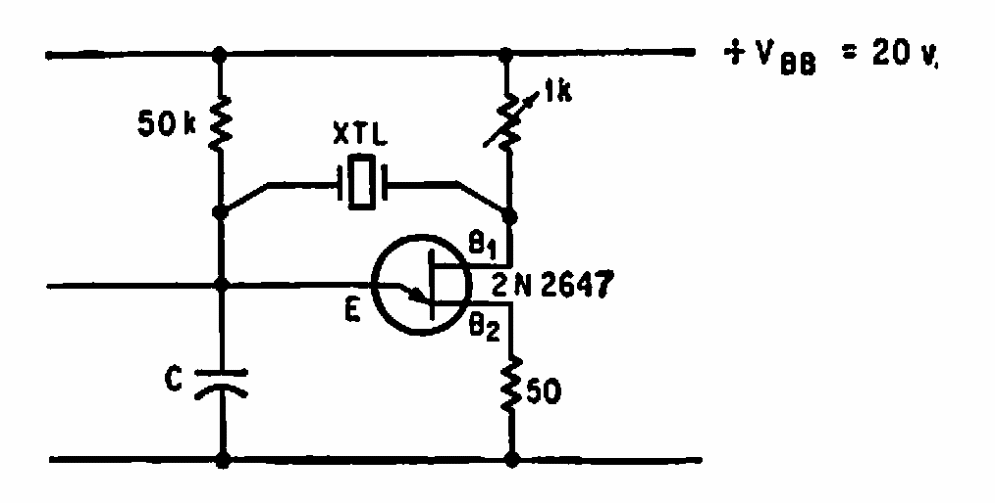

     This circuit uses a capacitor that depends on the frequency of the crystal. We found it in a 1967 documentation. The maximum frequency is around 100 kHz.




| Clique na imagem para ampliar |
