Constant Current Source (CB6628E)

Details
Written by: Newton C. Braga

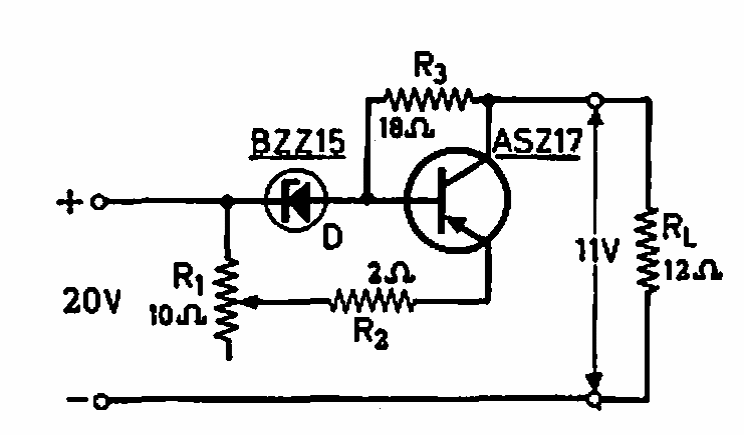

    This 1 A circuit was found in a Philips documentation from 1966. The transistor is of the time, but a modern transistor of equivalent power can be used.
