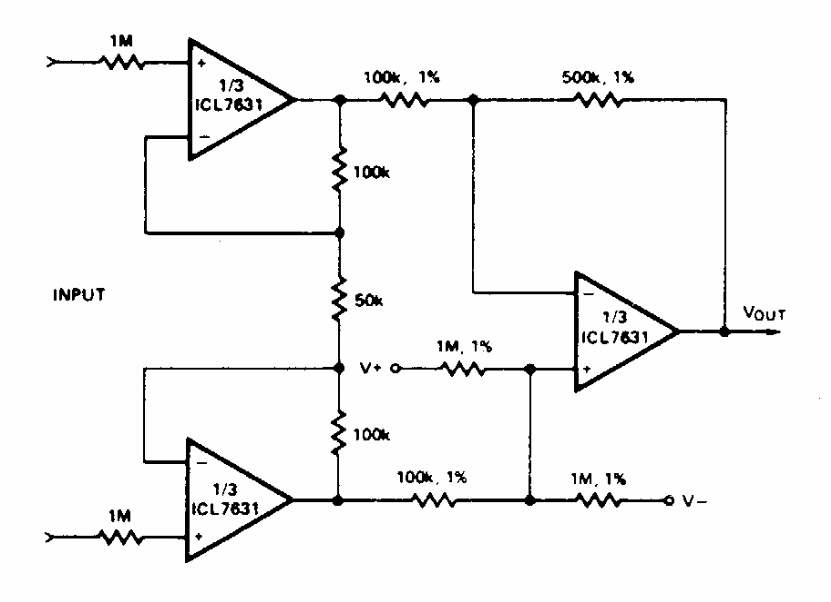

Medical instrumentation preamplifier (CB7235E)

Details
Written by: Newton C. Braga



     Suggested by Intersil in documentation from the 90's, this circuit is valid for modern operating equivalents, including types that operate with low voltages.
