Analog multiplier (CB7392E)

Details
Written by: Newton C. Braga

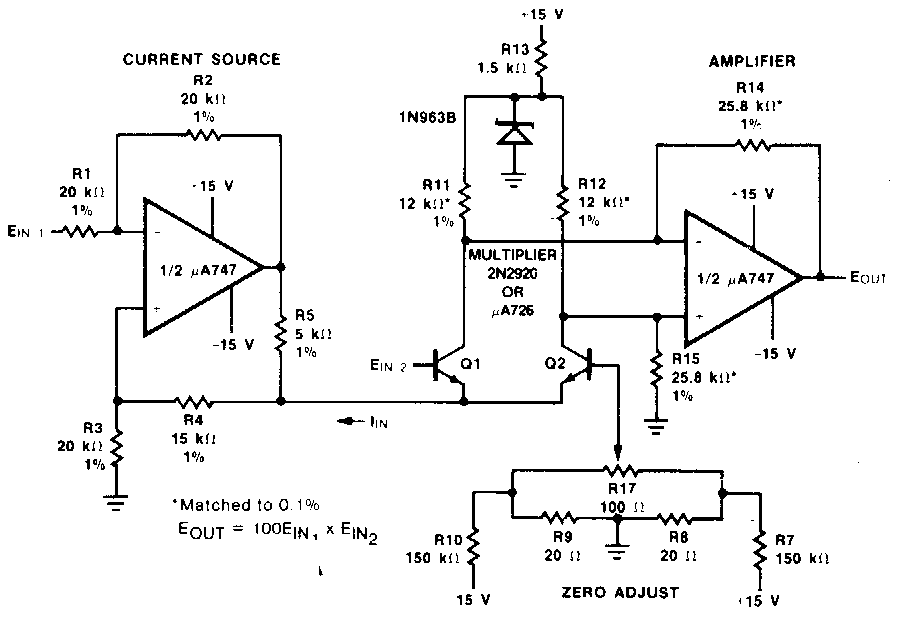

     Suggested by Fairchild in a 1980s publication, this multiplier uses operational amplifiers from that time. The power supply must be symmetrical.
