Power grid voltage failure indicator (CB7013E)

Details
Written by: Newton C. Braga

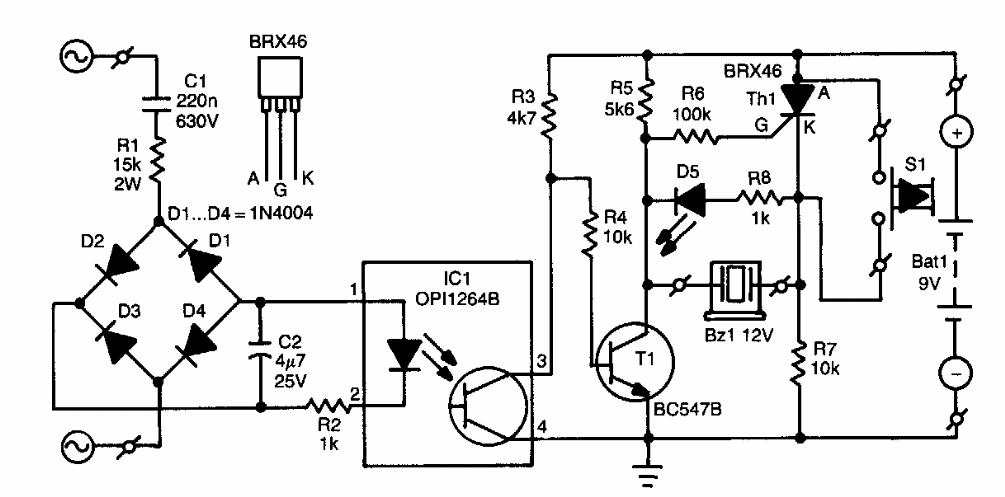

     Found in an 80's Elektor, this circuit can use any equivalent optical coupler. The buzzer is of the Sonalert type with included oscillator.
