Telegraph manipulator (CB7038E)

Details
Written by: Newton C. Braga

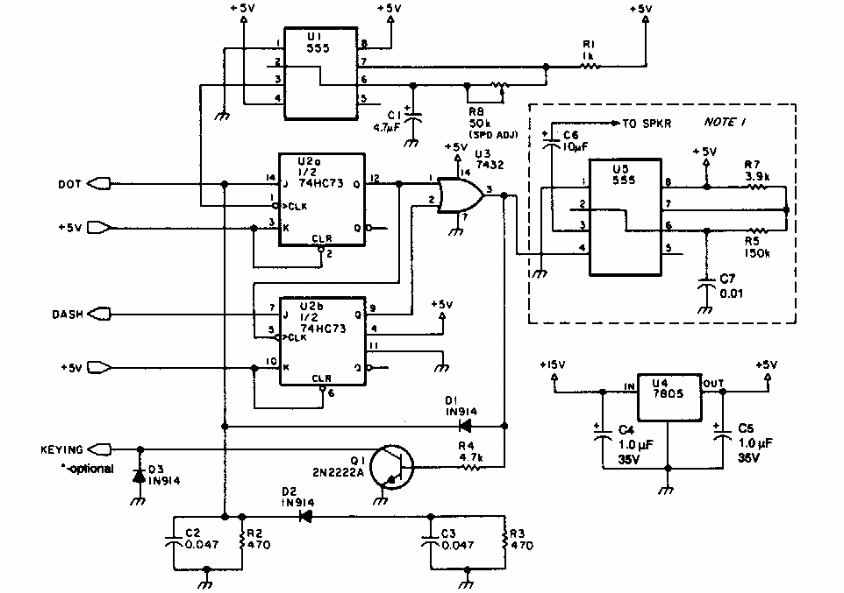

     This circuit was found in an American magazine 73 for radio amateurs of the 80s. It is an automatic transmission circuit for telegraphy. The circuit is TTL.
