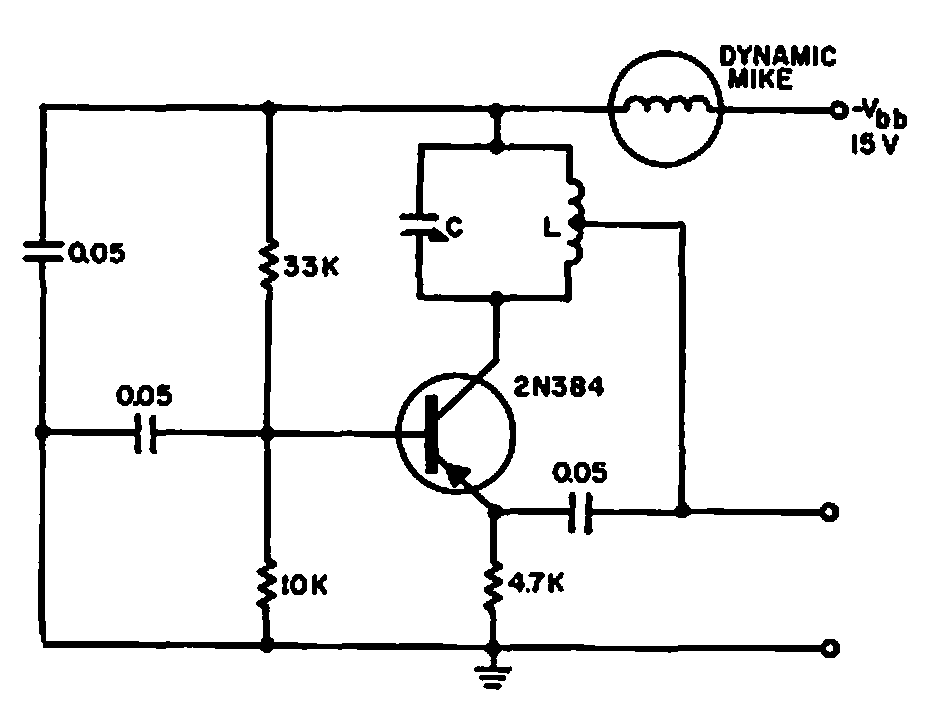

Found in a 1964 Electronic Design, this circuit shows how to modulate a signal with a dynamic low impedance microphone. The circuit operates in the FM range (88 to 108 MHz).
| Clique na imagem para ampliar |
Simple modulator (CB6915E)
- Details
- Written by: Newton C. Braga
