Pacemaker (CB7372E)

Details
Written by: Newton C. Braga

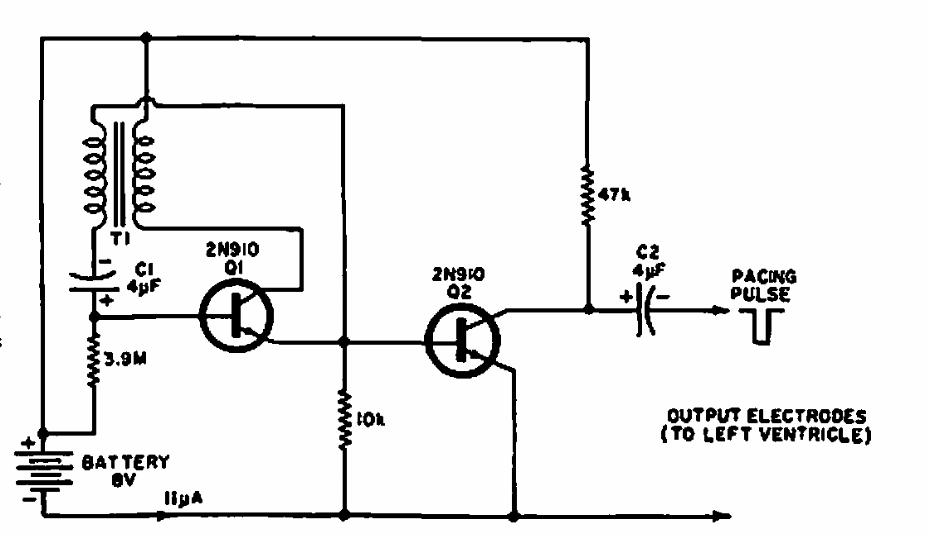

     This circuit is from 1968 American medical documentation. The circuit generates pulses of excitation that are applied to the patient's heart. The components are from the era. The pulses are 1 ms.




| Clique na imagem para ampliar |
