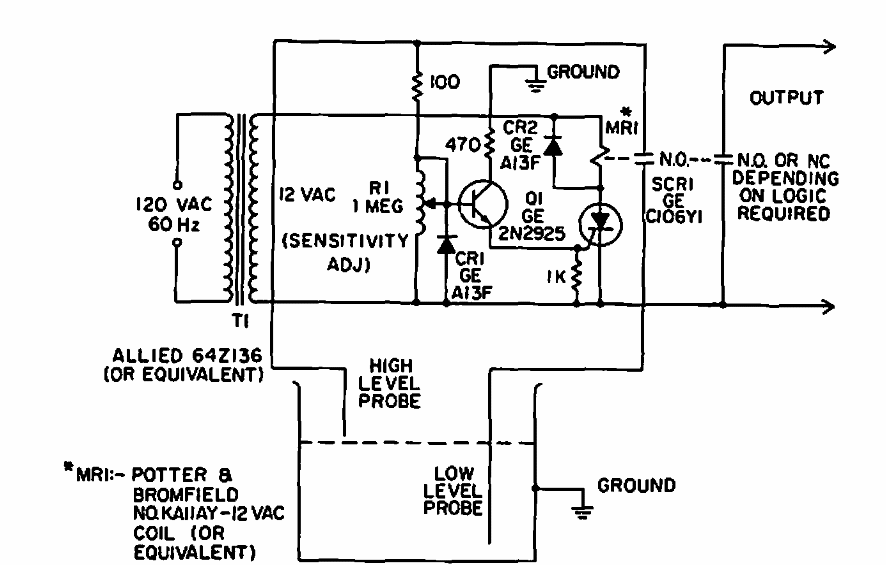

This circuit was found in a 1966 General Electric documentation. It makes use of direct contact water sensors and therefore requires an isolation or low voltage relay drive transformer.
| Clique na imagem para ampliar |
Reservoir Level Control (CB6570E)
- Details
- Written by: Newton C. Braga
