Shield for inductive loads using a triac (CB7051E)

Details
Written by: Newton C. Braga

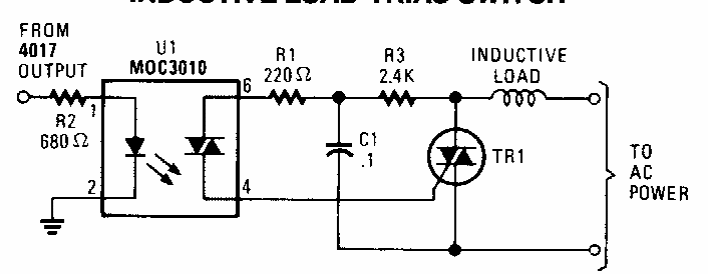

    This circuit was found in a Popular Electronics from the 80's. The circuit can be applied to any triac depending on the load and the resistor R2 depends on the control circuit output.




| Clique na imagem para ampliar |
