1 A adjustable power supply (CB7092E)

Details
Written by: Newton C. Braga

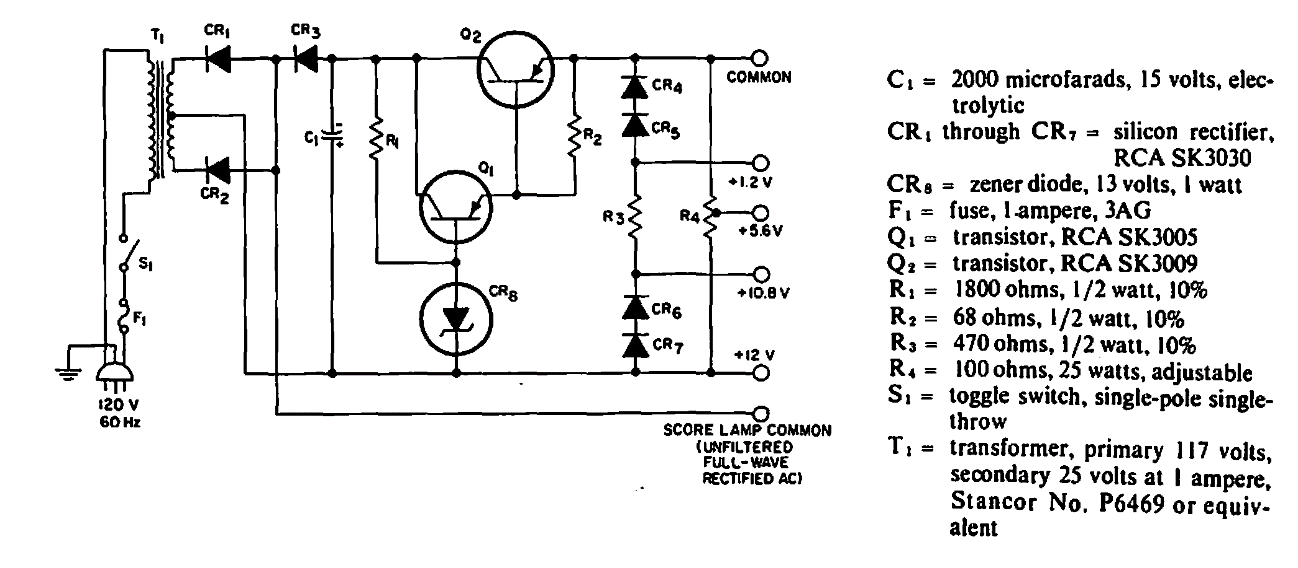

     This power supply was found in a RCA publication from the 1970s. The circuit uses transistors from that time. Modern equivalent transistors can be used.
