Battery Saver (CB7134E)

Details
Written by: Newton C. Braga

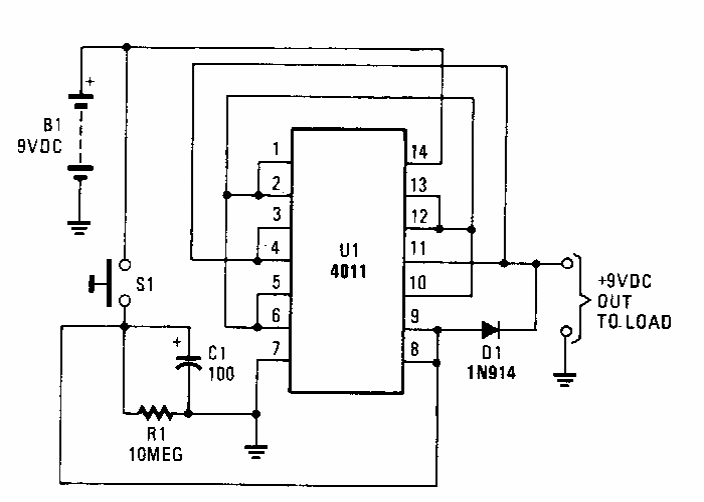

     Found in Popular Electronics from the 90s, this circuit consists of a timer that turns off the power of a circuit after a time determined by C1, saving the battery.
