Constant Output Limiter (CB6323E)

Details
Written by: Newton C. Braga

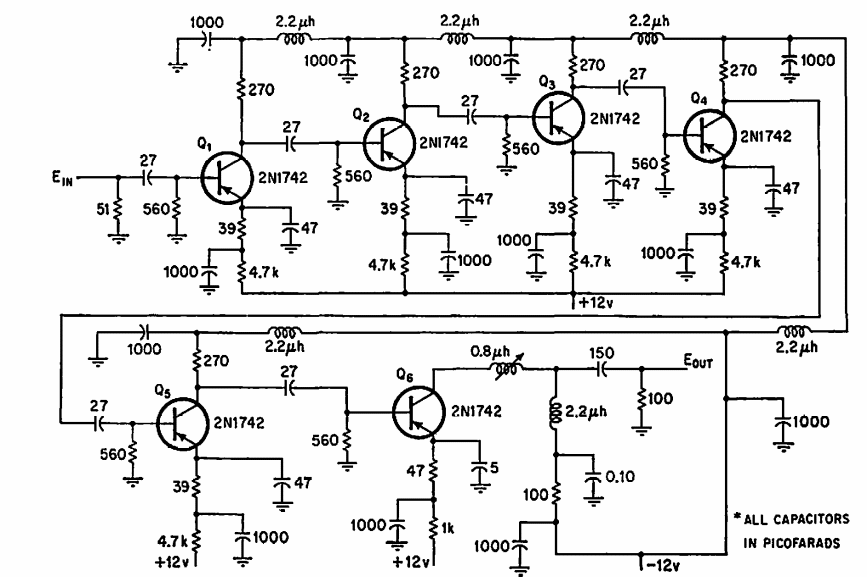

     This limiter circuit provides a constant amplitude signal at frequencies of up to 100 MHz. The circuit operates with 9 mV input signals and was found in a 1969 US documentation.
