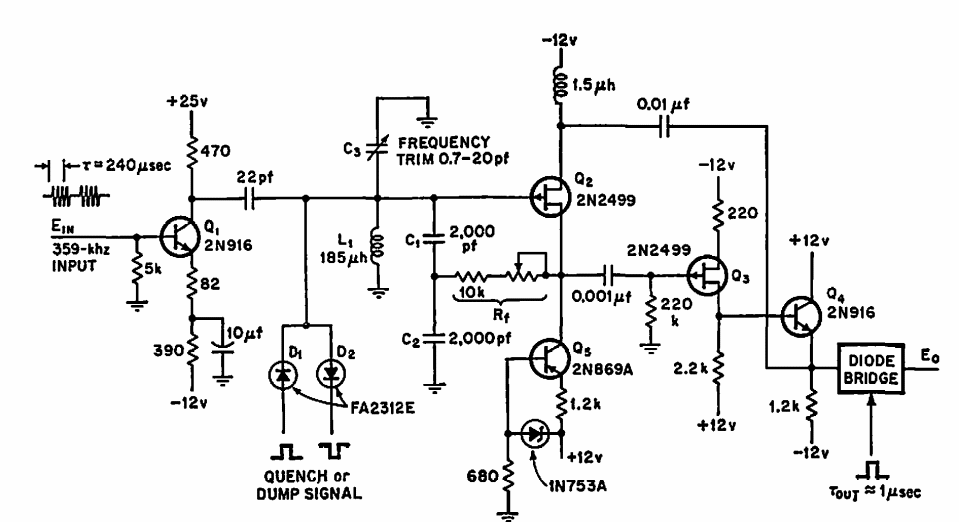

Found in a 1970 American publication, this circuit uses transistors of the time. These transistors may be replaced by current equivalents. The factor Q is greater than 3 000.
| Clique na imagem para ampliar |
Active Bandpass Filter (CB6723E)
- Details
- Written by: Newton C. Braga
