Light Controlled Blinker Indicator (CB6745E)

Details
Written by: Newton C. Braga

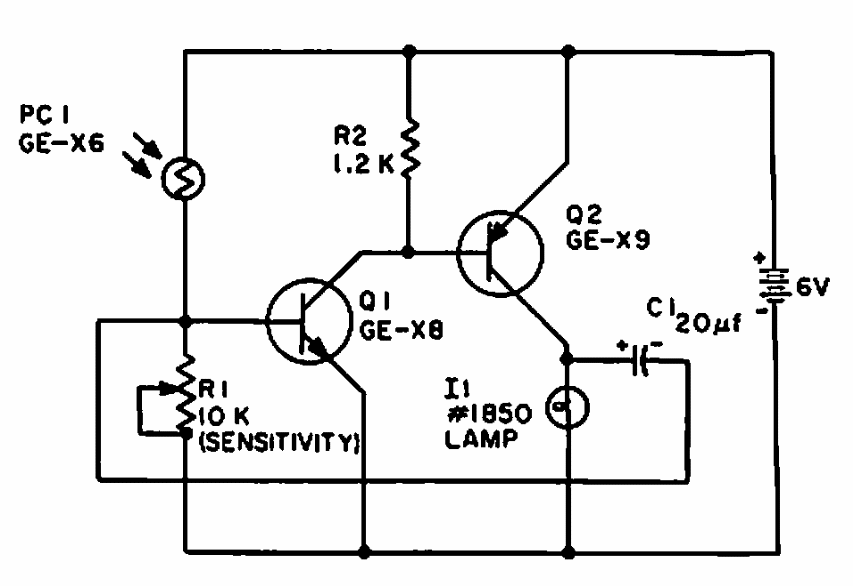

     Suggested by General Electric in a 1965 publication this circuit uses a light bulb. Can be changed to use LED and capacitor can be 22 uF.
