Annunciator (CB6792E)

Details
Written by: Newton C. Braga

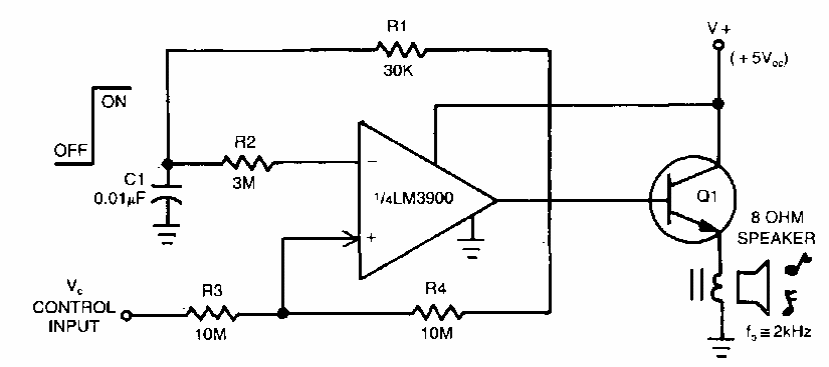

    Found in a 90's EDN this circuit can be used as a shield. The transistor is a general-purpose type and the frequency of the emitted sound is determined by R1 / C1.
