60 second relay delay (CB7233E)

Details
Written by: Newton C. Braga

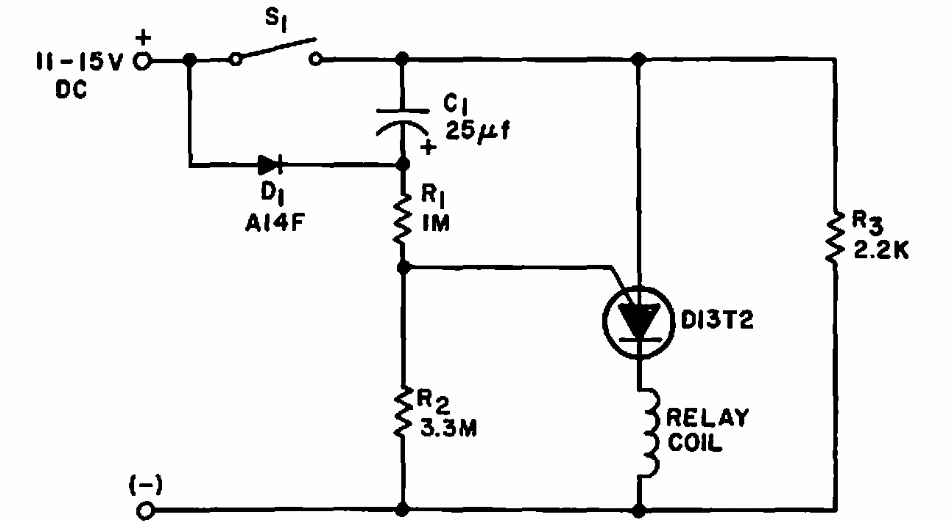

    Suggested by General Electric documentation from 1968, this circuit activates a relay after 60 seconds, keeping it closed. PUT is an uncommon component today.




| Clique na imagem para ampliar |
