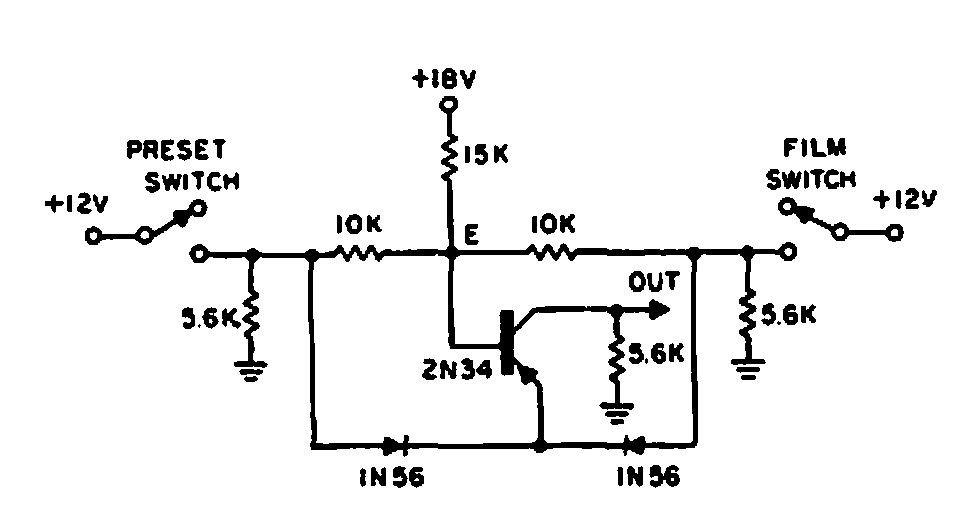

This circuit is from a 1964 Electronic Design book that presents application ideas for transistors. The circuit uses a transistor from that time, but modern equivalents can be used.
| Clique na imagem para ampliar |
Exclusive Or with transistor (CB7259E)
- Details
- Written by: Newton C. Braga
