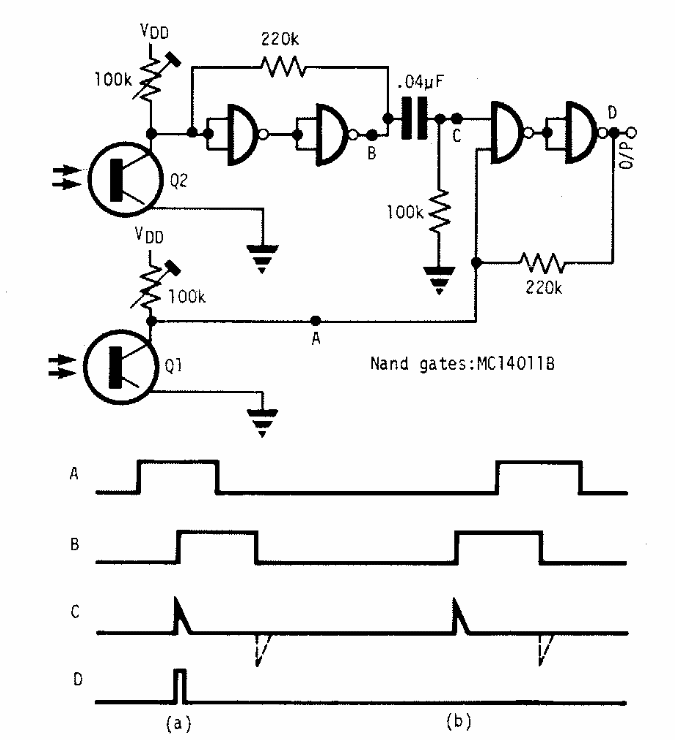

Found in 1980s Electronic Engineering, this circuit uses common phototransistors as sensors. The circuit is CMOS using an integrated 4011.
| Clique na imagem para ampliar |
Unidirectional motion sensor (CB7281E)
- Details
- Written by: Newton C. Braga
Found in 1980s Electronic Engineering, this circuit uses common phototransistors as sensors. The circuit is CMOS using an integrated 4011.
