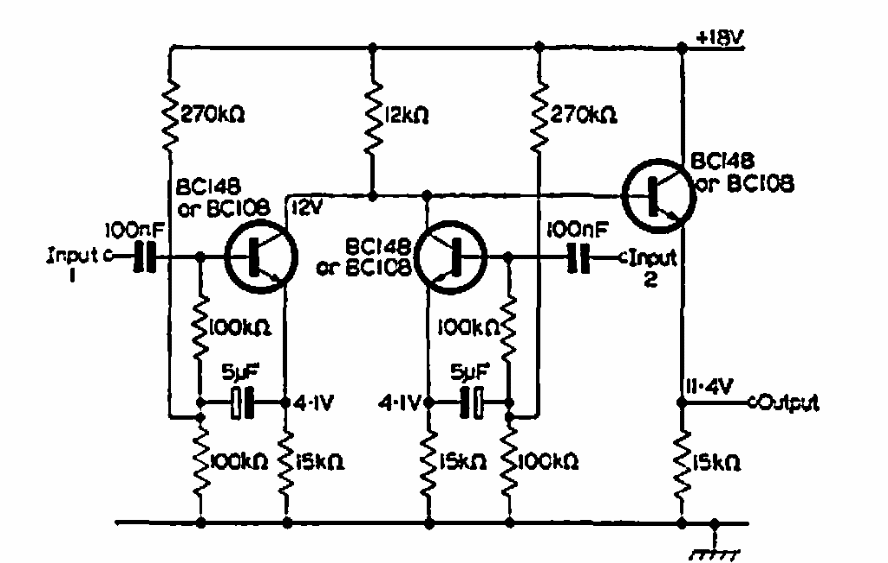

Equivalent transistors like the BC548 can be used on this 1969 Mullard circuit. The circuit has two inputs, but their number can be expanded by repeating the steps. The circuit has na 2M5 ohm input impedance.
| Clique na imagem para ampliar |
Two Input Mixer (CB6307E)
