Assisted Ignition (CB6379E)

Details
Written by: Newton C. Braga

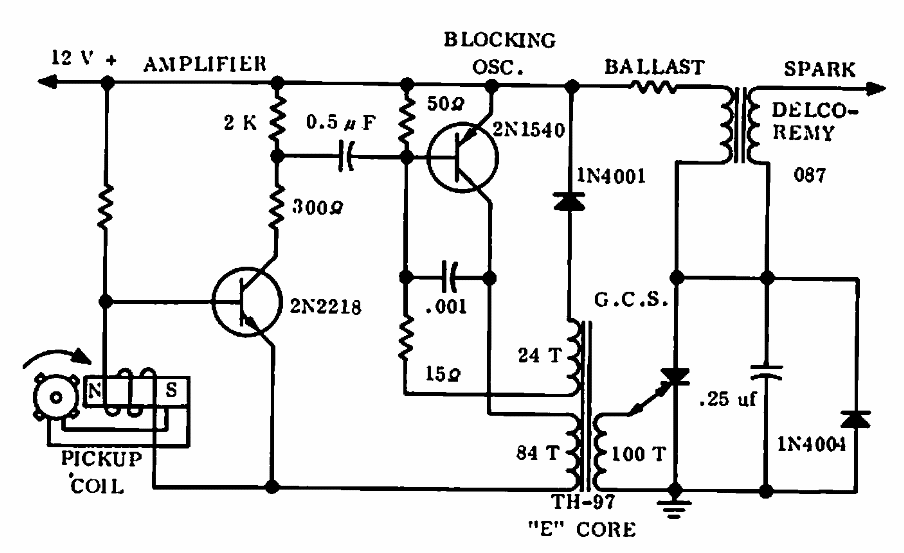

    This circuit was found in Motorola's 1967 documentation. The circuit makes use of power transistors of the time. For pulse pickup an appropriate pickup coil is used.
