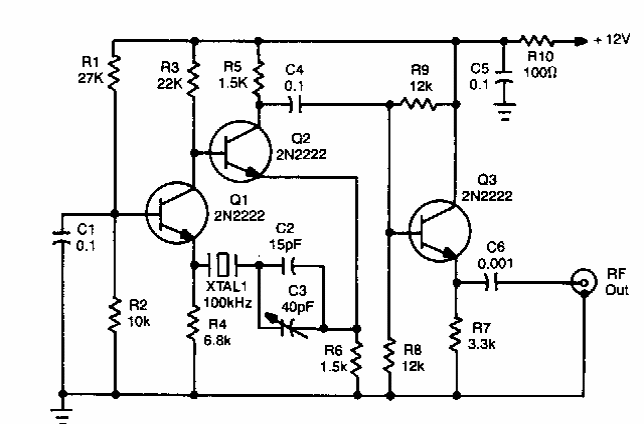

100 kHz Calibrator (CB5607E)

Details
Written by: Newton C. Braga



    This circuit was obtained from Popular Electronics of the 1990s. The circuit uses common transistors today and the frequency is given by the crystal.




| Clique na imagem para ampliar |
