VTVM Adapter (CB7347E)

Details
Written by: Newton C. Braga

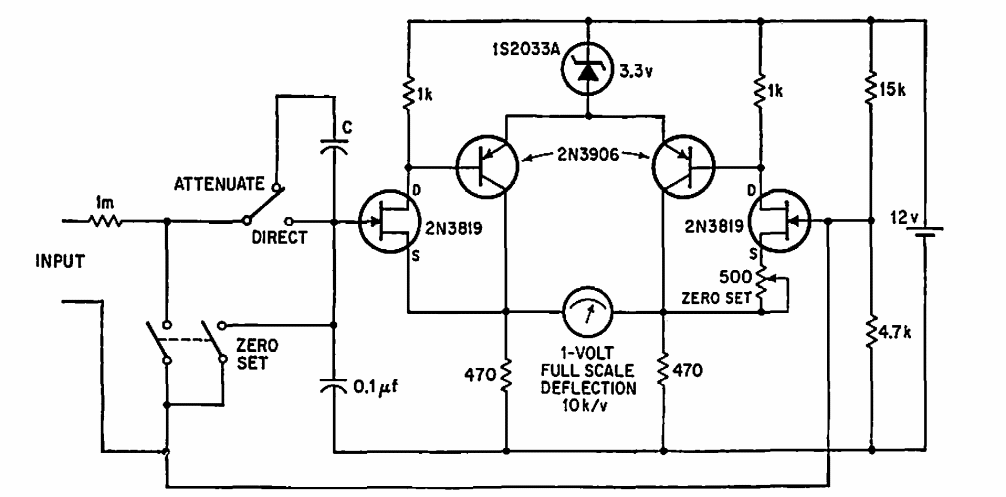

     This circuit for voltmeter has an output of 1 V for 100 uA having been suggested by American publication of 1969. The transistors are general purpose types.
