Battery Charger (CB6394E)

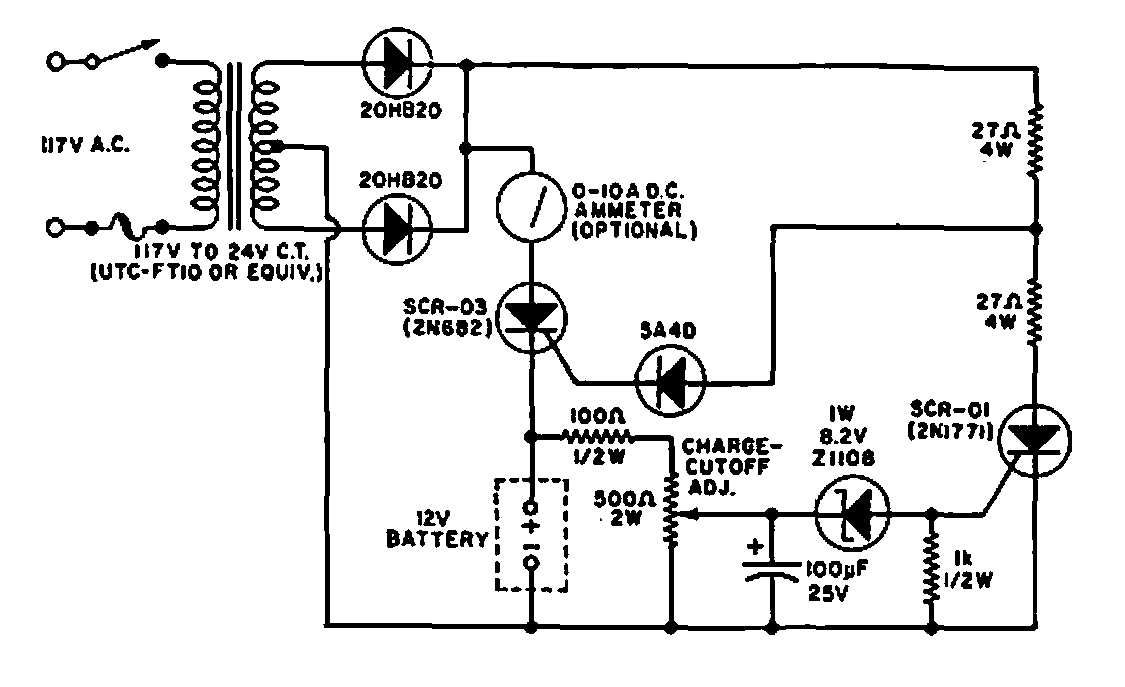

We found this circuit in a 1968 Electronics World. The potentiometer should be set to trigger the SCR when the battery is fully charged.
