Driver for Electric Typewriter (CB6561E)

Details
Written by: Newton C. Braga

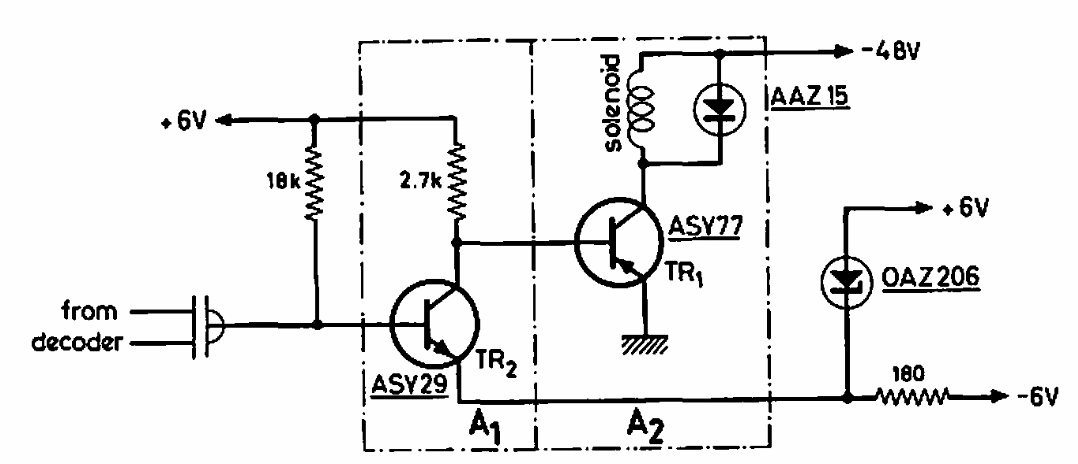

    This circuit was found in a Philips documentation from 1966. Its purpose is to drive the solenoid of an electric typewriter of the time.




| Clique na imagem para ampliar |
