SCR Chaser (CB6770E)

Details
Written by: Newton C. Braga

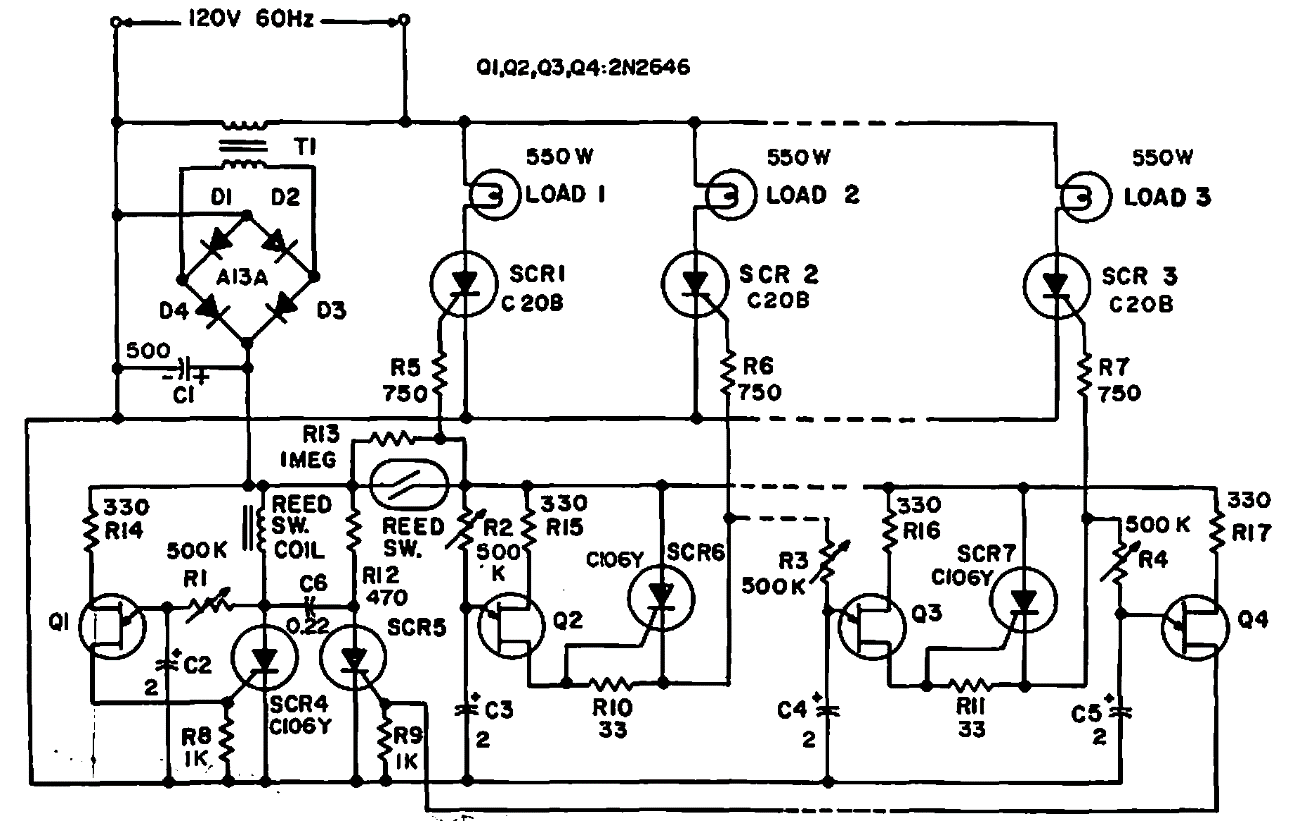

    Found in ancient American documentation this circuit uses semiconductors from the thyristor family such as SCRs, Triacs and unijunctions. The circuit can control loads up to 550 W with the indicated triacs.




| Clique na imagem para ampliar |
