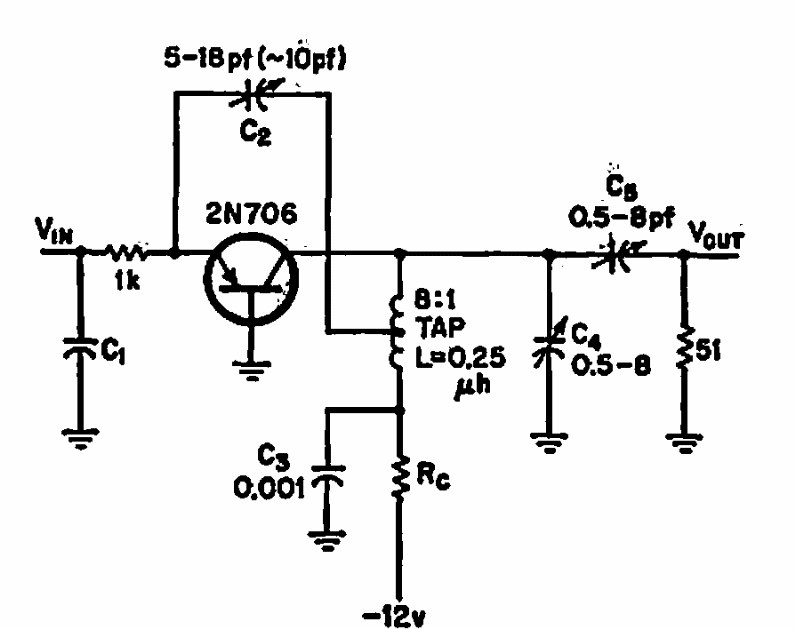

This circuit was obtained in a 1969 documentation. The circuit modulates both the emitter current and the collector voltage of the transistor. The circuit can operate with frequencies up to 100 MHz with the suggested original transistor.
