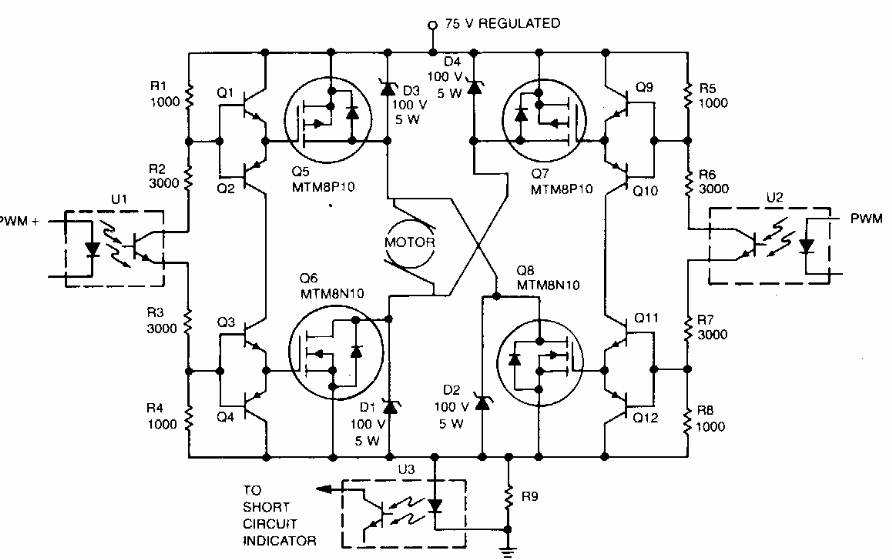

Suggested by Motorola documentation from the 1980s, this circuit makes use of MOSFETs of the time. MOSFETs can be modern types according to the current of the controlled motor. Bipolar transistors are general purpose types according to the circuit voltage.
