Peak voltmeter (CB7370E)

Details
Written by: Newton C. Braga

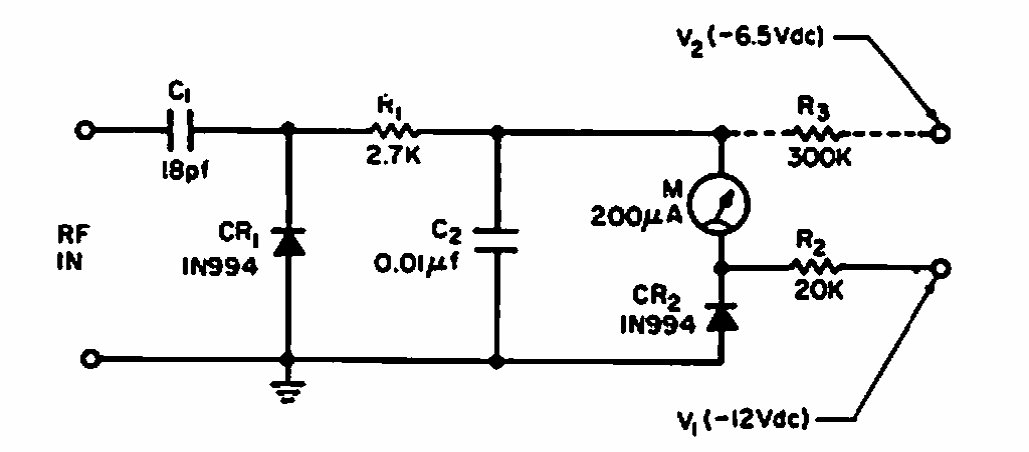

     With this circuit found in a 1965 Electronic Design, it is possible to read a peak voltage of up to 250 MHz signals.
