Current Amplifier (CB6136E)

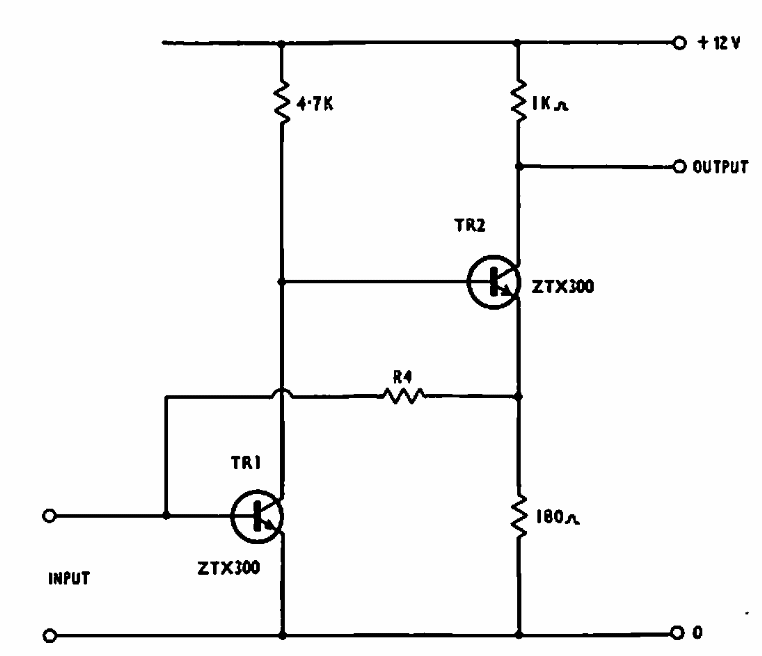

This circuit was found in a British documentation from 1969. It can be implemented with modern transistors. The pass band is 6 MHz.

| Clique na imagem para ampliar |
