Overtone Crystal Oscillator (CB6184E)

Details
Written by: Newton C. Braga

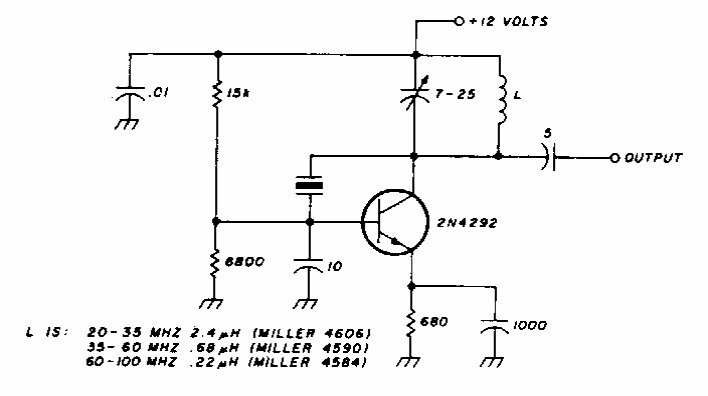

    This circuit was found on an 80's Ham Radio. The transistor admits equivalent. The circuit can generate 20 to 100 MHz signals operating at the fifth harmonic of the crystal.




| Clique na imagem para ampliar |
