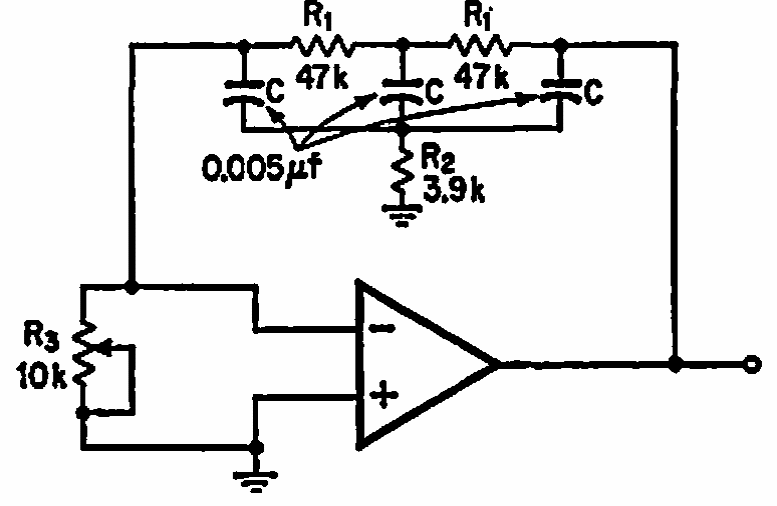

This circuit was found in old documentation, but the setting applies to any operational. Resistors and capacitors determine the frequency. For the indicated values the frequency is 10 kHz.
| Clique na imagem para ampliar |
Sharp Notch Filter (CB6722E)
- Details
- Written by: Newton C. Braga
