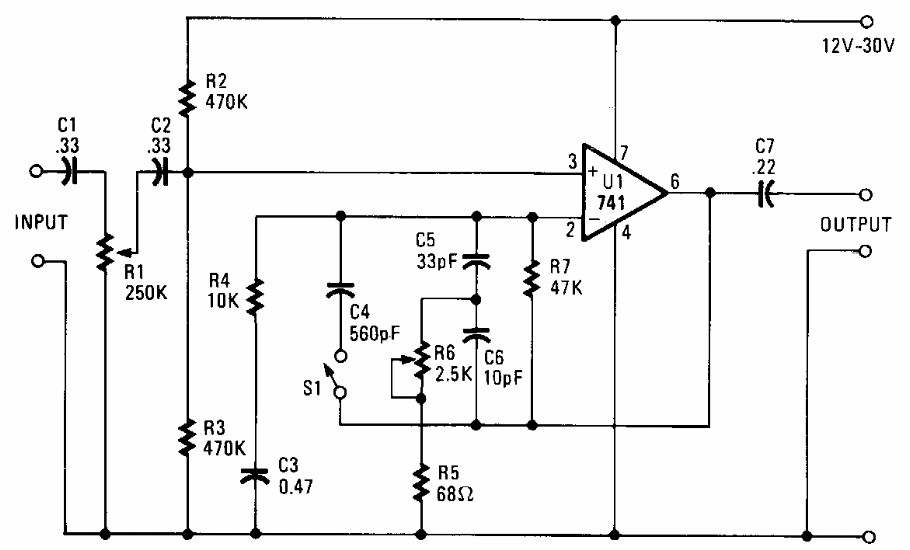

This circuit was found in a Hands On Electronics from the 90s. The circuit does not need a symmetrical power source. The signals with which it operates are alternating.
| Clique na imagem para ampliar |
Instrumentation preamplifier (CB6838E)
