Automatic light switch (CB7050E)

Details
Written by: Newton C. Braga

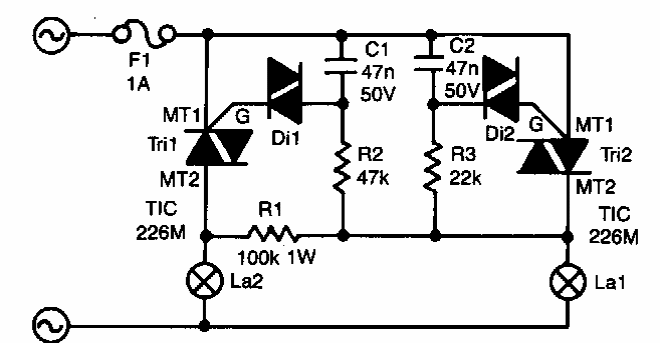

     The purpose of this circuit found in an old Elektor is to light a lower power lamp when the bigger one burns out. The loads depend on the triacs.
