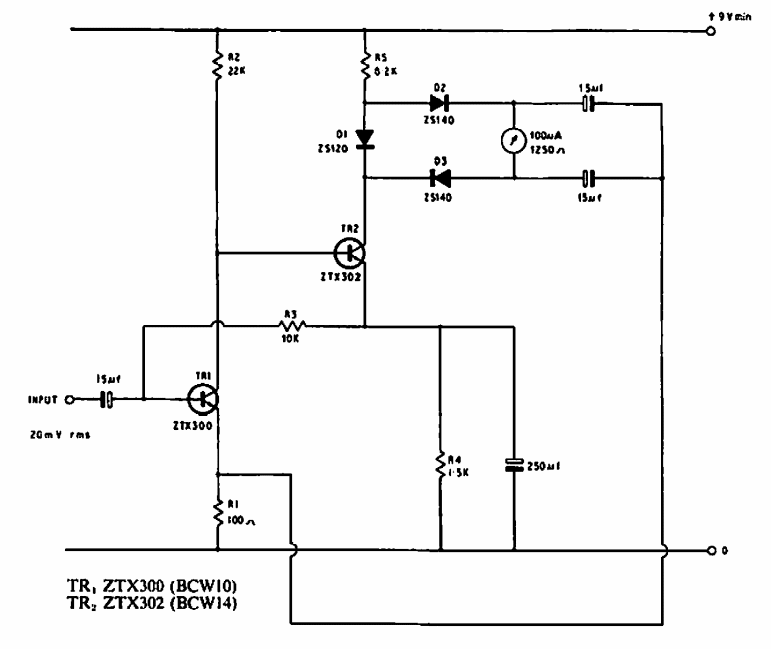

This circuit from Ferranti was released in 1969. It makes use of the company's transistors that admit current equivalents. The input voltage is 30 mV for total deflection. The band pass is 800 kHz.
| Clique na imagem para ampliar |
Millivoltmeter AC (CB7344E)
