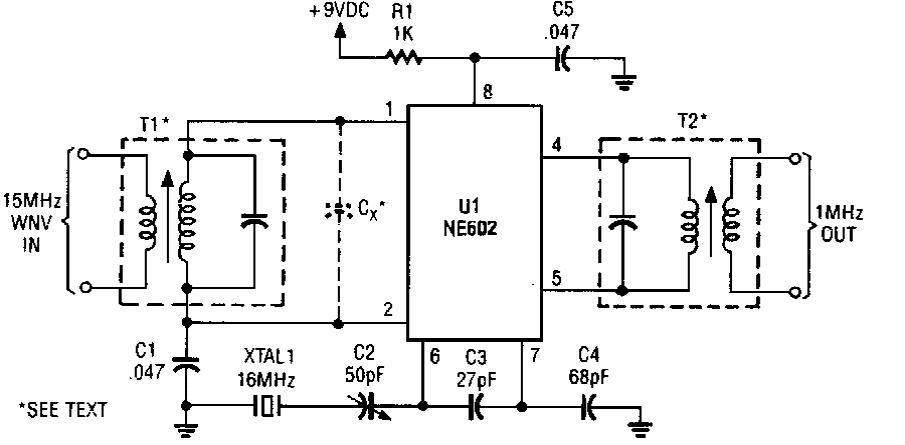

WWV is the prefix for the United States' time and frequency patterns station. These signals can be used for equipment calibration and adjustments. This circuit allows to receive the signals of 15 MHz of this station in an AM radio in 1 MHz. We find in a Popular Electronics of the 90s.
| Clique na imagem para ampliar |
