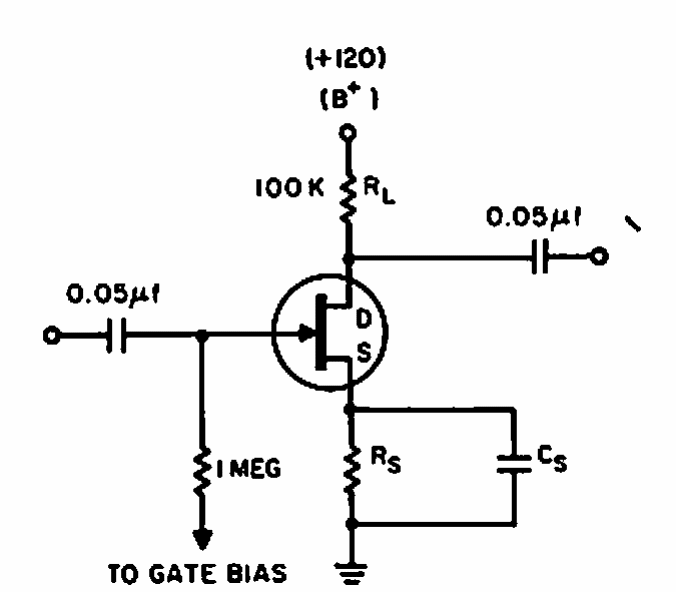

Auto Bias for FET (CB6125E)

This configuration is from a 1964 US documentation valid for any FET. The range of power voltages depends on the application.

| Clique na imagem para ampliar |

Eighth-Order Filter (CB6741E)
This low pass filter has attenuation of 5.5 dB and the frequencies depend on the values of the...
Instrumentation Amplifier (CB4938E)
This circuit is from an old 80's linear circuit manual. The configuration can be implemented with modern...
Gas and Steam Detector (CB6364E)
Found in an American 1980s documentation, this circuit makes use of a sensor of the era uncommon...
