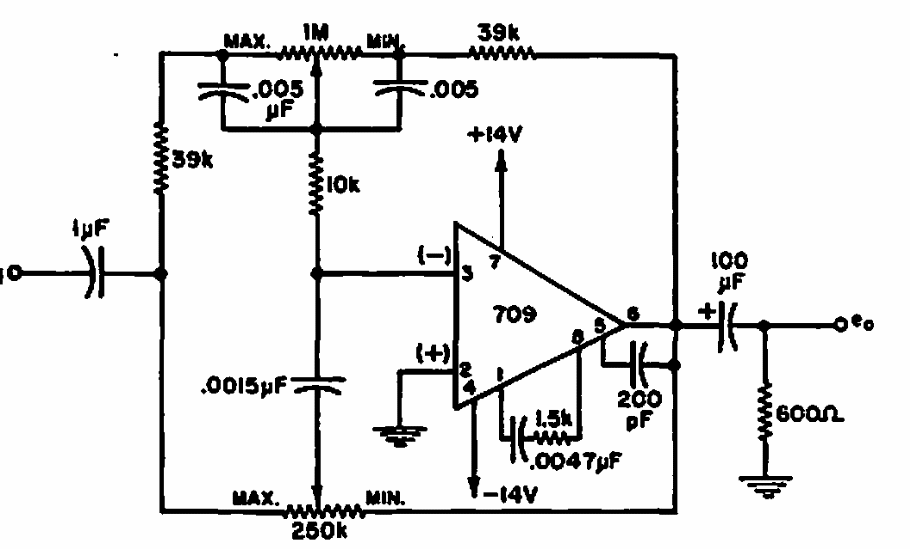

Tone Control (CB6306E)

Details
Written by: Newton C. Braga



    This circuit was found in an Electronics World of 1969. The components of the time. The operational can be replaced by modern equivalent type.




| Clique na imagem para ampliar |
