Headlight Time Relay (CB6378E)

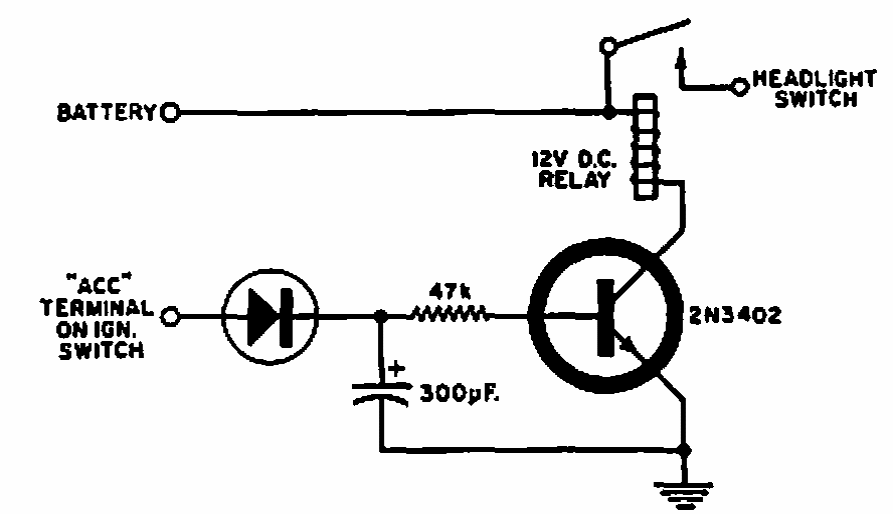

This circuit is from an Electronics World of 1967. The circuit slows down the activation of a headlight. The capacitor determines the delay time.

| Clique na imagem para ampliar |

PLL Frequency Divider usintg the 555 (CB13732E)
We found this circuit in a 1977 Timers Cookbook. The circuit uses common components to divide a 1...
Decade Counter (CB24584E)
This TTL counter was found in the April 1979 issue of Radio Electronics magazine. The circuit is...
Precision Current Monitor (CB3995E)
This circuit is from the 1990 Motorola Linear Databook. The integrated circuit used is the LF355,...
