Single Crystal Filter (CB6542E)

Details
Written by: Newton C. Braga

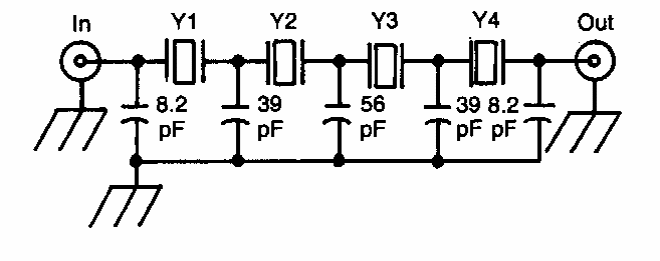

     High selectivity filters can be obtained by combining same frequency crystals in series as shown in the circuit.
