Emitter follower (CB6811E)

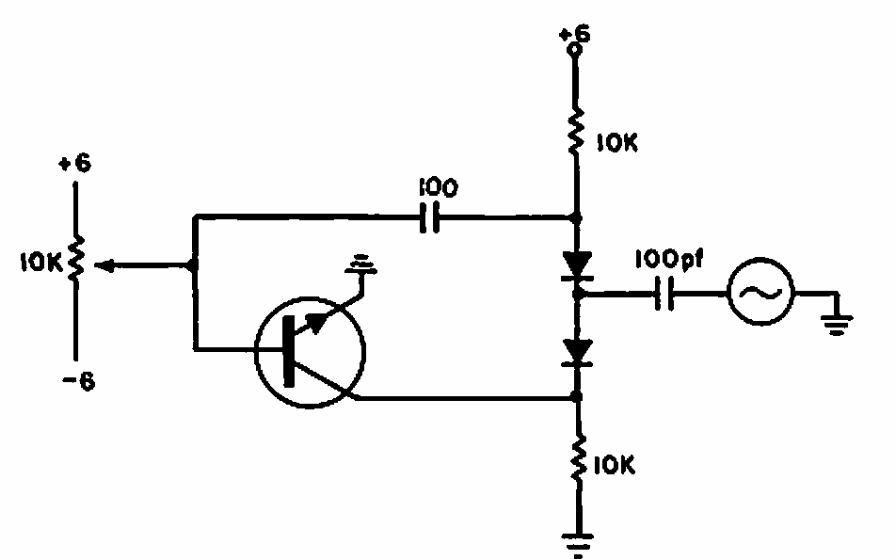

This emitter follower simulator circuit was obtained in a 1964 documentation. The circuit can be designed based on a modern transistor.

| Clique na imagem para ampliar |
