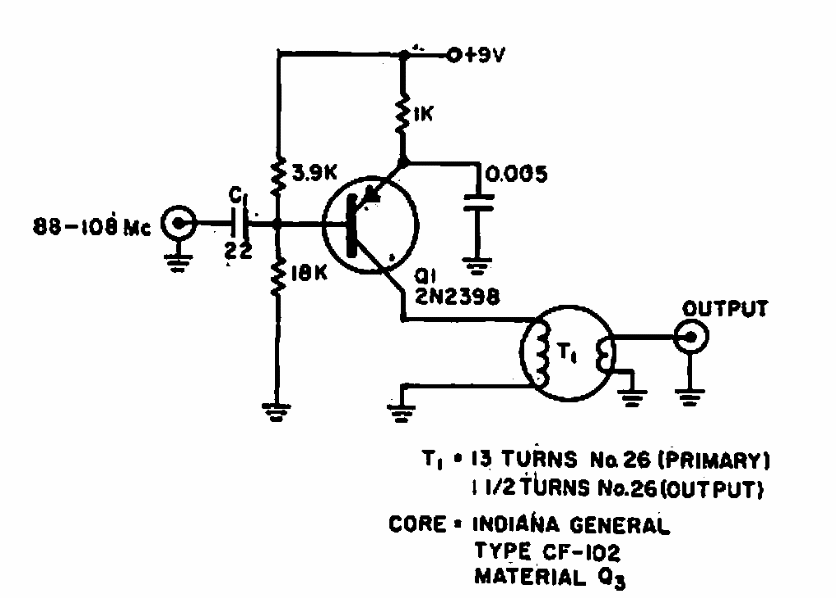

Found in an Electronic Design of 1964, this circuit is intended to the signal amplification in the 88 to 108 MHz band. The transistor can be a modern equivalent.
| Clique na imagem para ampliar |
FM preamplifier (CB6911E)
- Details
- Written by: Newton C. Braga
