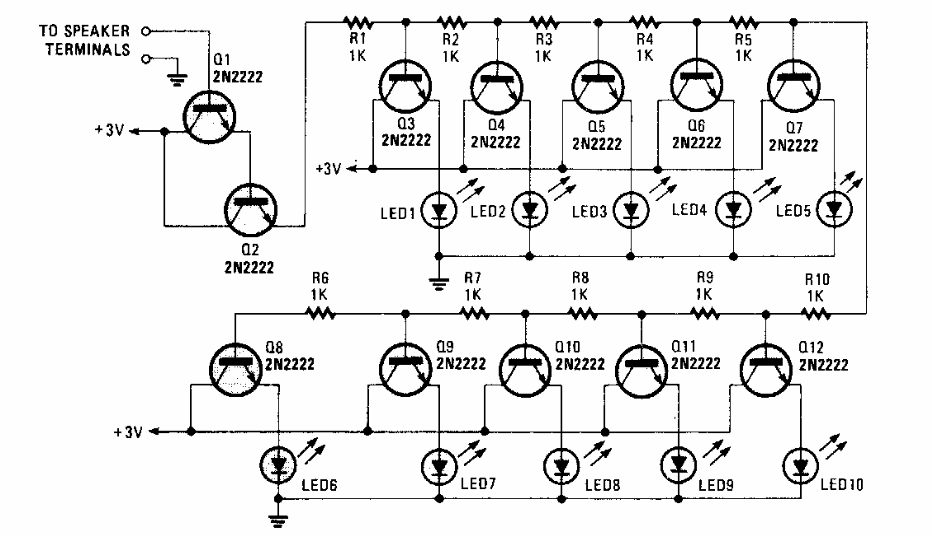

Transistorized Bragraph (CB7009E)

This circuit was found in 80's Popular Electronics. The components used are common and the number of indication channels (LEDs) can be changed.

| Clique na imagem para ampliar |
