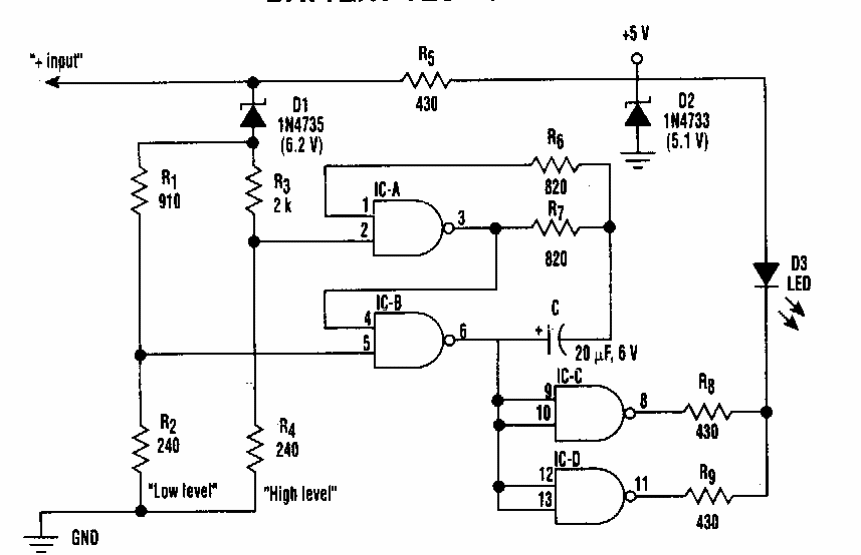

Found in an Electronic Design from the 90's, this circuit indicates three voltage levels by activating the LED in 3 modes: off, flashing and on for high voltage.
| Clique na imagem para ampliar |
Battery test circuit (CB7132E)
- Details
- Written by: Newton C. Braga
