Power stage (CB7279E)

Details
Written by: Newton C. Braga

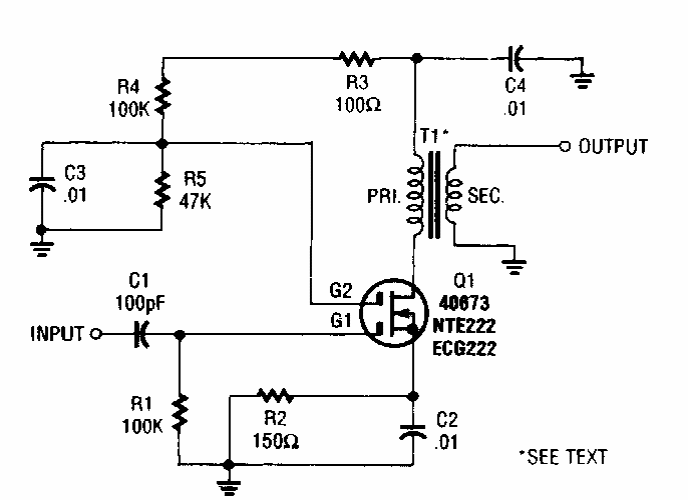

    This amplifier circuit with a low power MOSFET was found in Popular Electronics from the 90s. The circuit uses a small transformer of the type found in old transistor radios.
