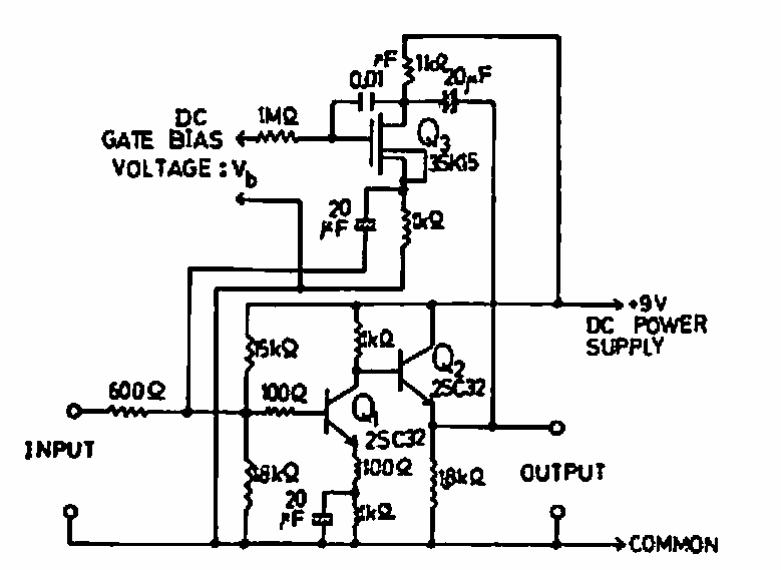

This circuit was found in a 1970 IEEE publication. The circuit functions as a voltage controlled variable resistor and can be used with audio signals. Transistors admit current equivalents.
| Clique na imagem para ampliar |
Electronic Potentiometer (CB6320E)
- Details
- Written by: Newton C. Braga
