High Power Flasher (CB6254E)

Details
Written by: Newton C. Braga

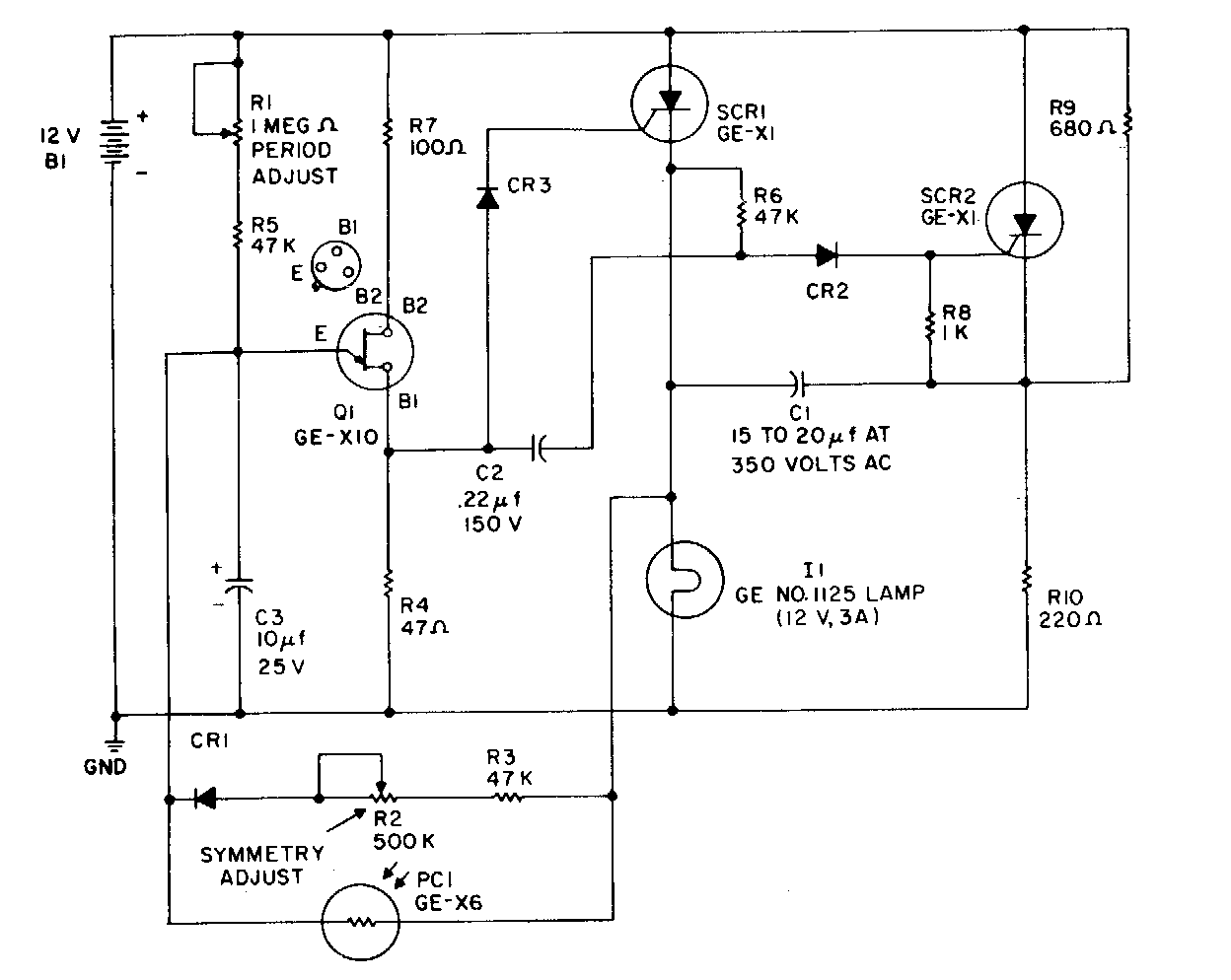

    This high-powered battery powered flasher was found in General Electric documentation from the 1980s. The circuit can control loads up to 3 A and has a sensor that triggers it in the absence of light.




| Clique na imagem para ampliar |
