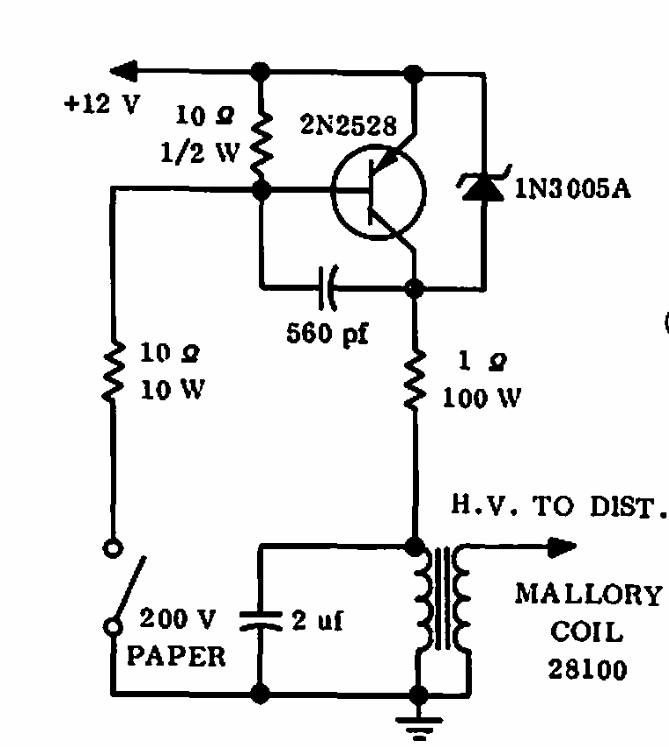

This Motorola circuit uses only one transistor. The circuit is from 1965 documentation. The transistor must have a collector current rated at least to 12 A.
| Clique na imagem para ampliar |
Simple Assisted Ignition (CB6392E)
- Details
- Written by: Newton C. Braga
