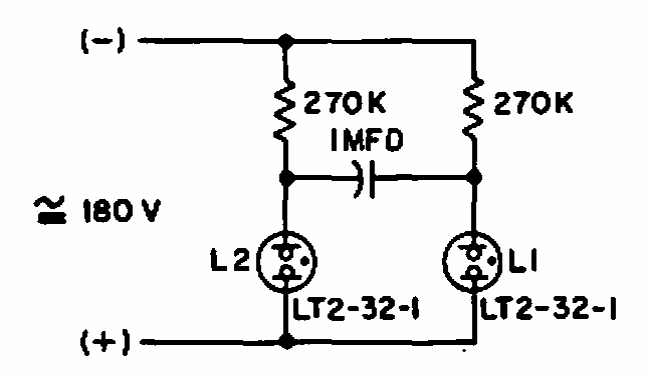

This simple neon alternating flashing circuit was found in an old American publication. The current is very low, but the supply must be made with at least 100 V.
| Clique na imagem para ampliar |
Neon Flasher (CB7089E)
- Details
- Written by: Newton C. Braga
